E-shaped electric lift table
The E-shaped electric lift table is a robust and practical lifting solution designed for efficient pallet handling and load positioning in industrial environments. Available with load capacities of 1,000 kg (HE1000) or 2,000 kg (HE2000), it features a low-profile E-shaped platform that can be used without a pit or ramp, allowing pallets to be placed directly onto the table using a hand pallet truck. Powered by a reliable Bucher hydraulic electro-pump, the lift table offers smooth and controlled lifting with precise speed regulation. Its high reliability, long service life, and ergonomic push-button controller with dead-man switch make it ideal for palletizing, packing stations, and load leveling applications.
Details of E-shaped electric lift table
▲ E-shaped electric lift table with a load capacity of 1 or 2 metric tons depending on the model chosen

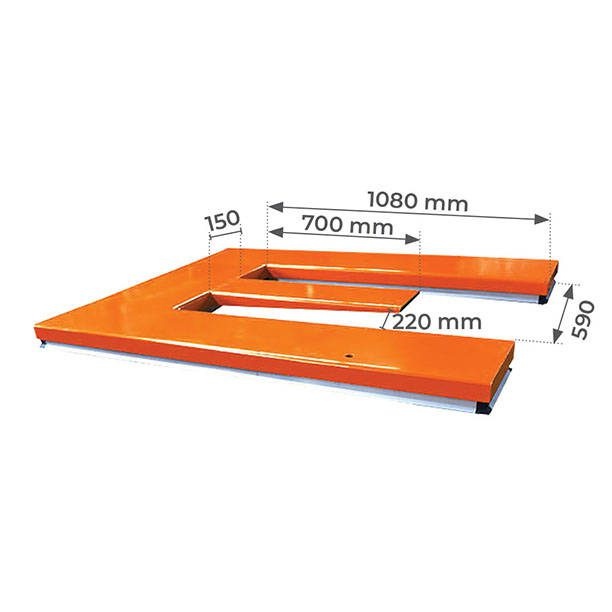

▲ Platform dimensions: 1400 x 1200 mm (HE1000) or 1500 x 1300 (HE2000) mm
▲ Lift height min. / max.: 85 / 885 mm (HE1000) or 100 / 820 mm (HE2000)
▲ Robust, reliable and very practical
▲ Bucher hydraulic electro-pump
▲ E-shaped low profile platform can be used without a pit or ramp (85 mm low folded height)

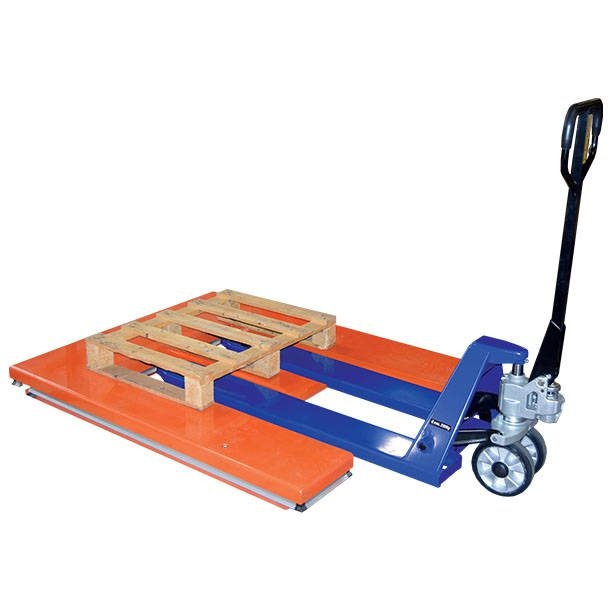

▲ Pallets can be placed directly on the E-platform using a hand pallet truck running between the scissors
▲ High reliability and long service life
▲ Ideal for palletizing or packing stations and easy load leveling and handling
▲ Push-button handle controller and dead man switch adapts easily to all industrial environments
▲ Lift and lowering speed control valve
▲ Download the product specifications for further technical information
Options
▲ Position control system (please specify the adjustment range desired when ordering)
|
