U-shaped Electric Lift Table
HU series “U”shape low profile scissor lift table (HU1000 and HU1500) with unique low-position design and U-shaped table, easy to use together with the pallet truck.
High-quality pumping station makes the lifting of the goods stable and powerful, and the safety bar device is arranged below the tabletop, when it encounters obstacles below the tabletop, it stops to descend to ensure safety. With overload protection function, more reliable. The hydraulic system is equipped with an explosion-proof valve to prevent the platform from falling rapidly when the oil pipe bursts.
Anti-pinching shear fork design to prevent pinching. The internal power pack is equipped with a safety valve and a compensation flow switch. The safety valve can prevent overload operation, and the compensation flow switch can control low speed.
The U lift table has models HU600, HU1000, HU1500, HU2000, and can do some of customized as working request. Widely used in manufacturing and maintenance industries.
Details of U-shaped Electric Lift Table
▲ U-shaped electric lift table with a load capacity of 1 or 1.5 metric tons depending on the model
▲ Platform dimensions: 1450 x 1140 mm (HU1000) or 1600 x 1160 mm (HU1500)

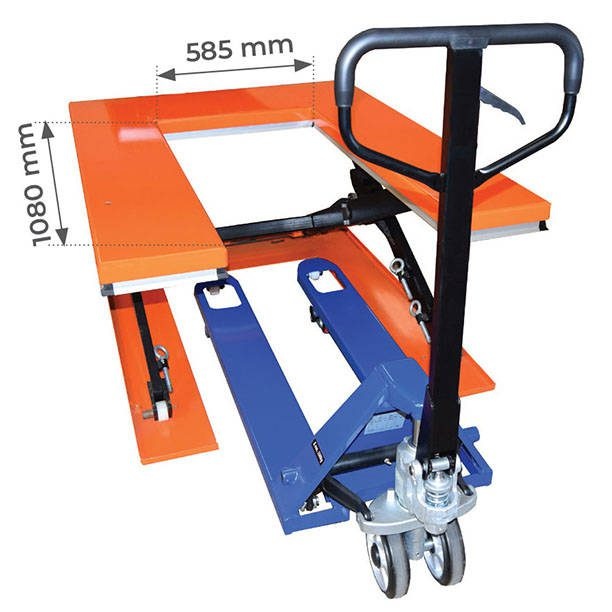

▲ Inner dimensions of the U platform: 1050 x 585 mm
▲ Robust, reliable and very practical
▲ Bucher hydraulic electro-pump
▲ Its U-shaped low profile platform and low folded height (85 mm) can be used without a pit or a ramp
▲ Pallets can be placed directly on the U-platform using a hand pallet truck running between the scissors
▲ High reliability and long service life
▲ Ideal for palletizing or packing stations and easy load leveling and handling
▲ Push-button handle controller and dead man switch adapts easily to all industrial environments
▲ Lowering speed control valve
▲ Download the product specifications for further technical information
▲ Watch this product demo video on our YouTube channel
Options
▲ Position control system (please specify the adjustment range desired when ordering)
|
