Low-Profile Electric Lift Table
The HYLC1000 Low-Profile Budget Electric Lift Table is a motorized lifting platform designed for easy loading and lifting of heavy goods directly from floor level. Its low-profile design allows pallets, carts, or equipment to be rolled onto the platform without the need for a pit installation, making it a practical and cost-effective solution for warehouses, workshops, and production lines.
Powered by a 380 V / 50 Hz, 0.75 kW motor, the table raises loads in approximately 18 seconds and is operated via a single 3 m cable that controls both the power unit and hand control. For safe operation, it includes safety clearance protection and an access ramp for easy loading and unloading.
Overall, the HYLC1000 is an economical electric lifting solution ideal for improving efficiency, safety, and ergonomics in material-handling tasks.
Details of HYLC1000 Low-Profile Electric Lift Table
▲ Low-profile budget electric lift table has a load capacity of 1000 kg

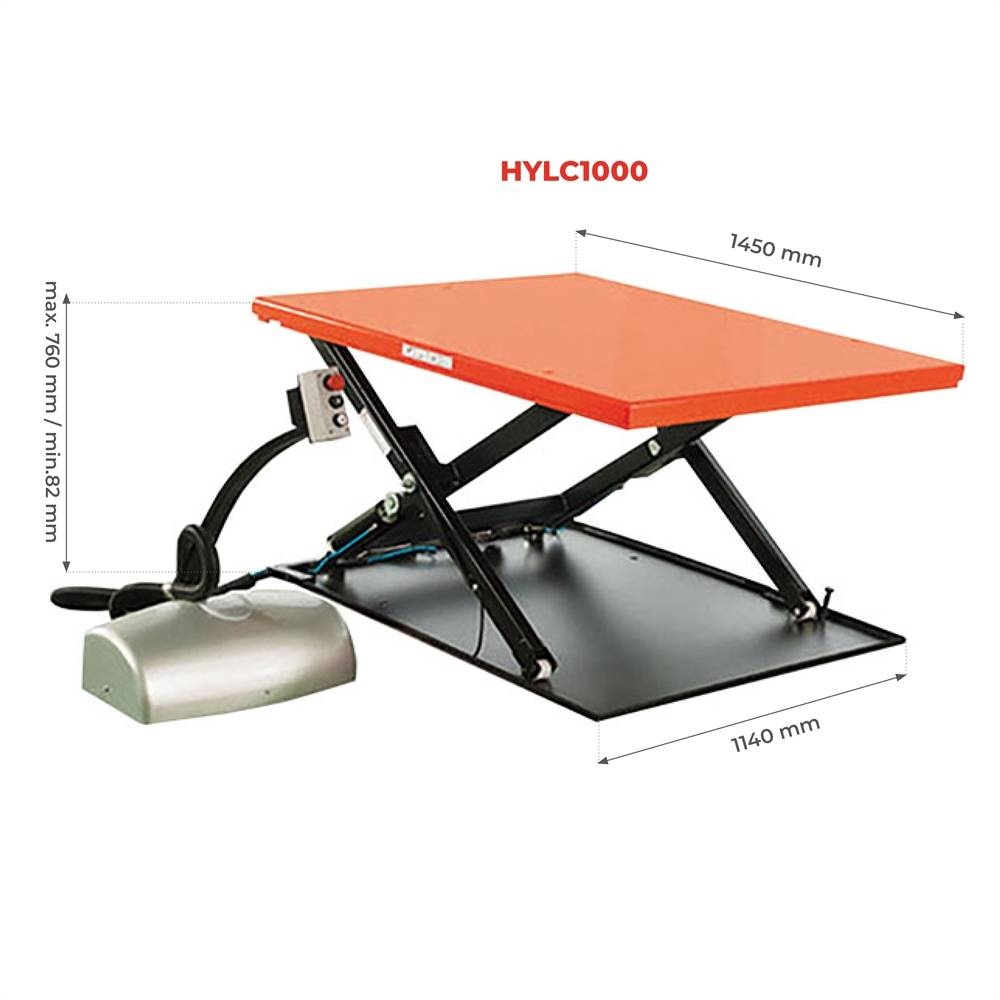

▲ Platform dimensions: 1450 x 1140 mm
▲ Lift height min. / max.: 82 / 760 mm
▲ Single 3 m cable for power unit and handle control
▲ Safety clearance to prevent trapping during operation
▲ Includes access ramp
▲ Download the product specifications for further technical information
|
