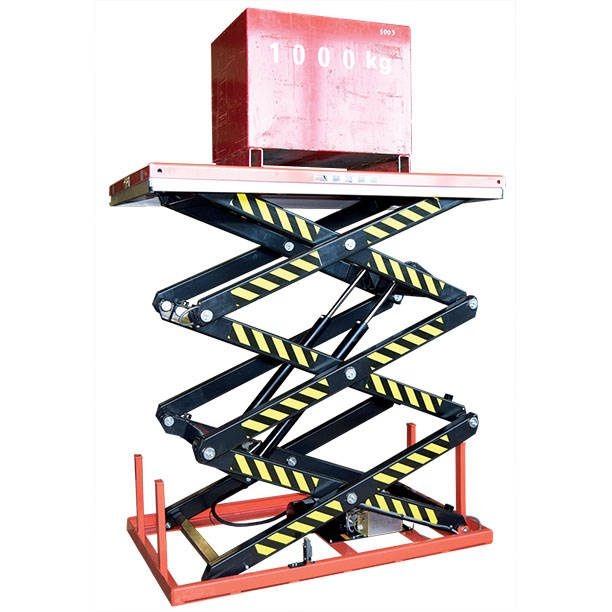

Electric triple scissor lift table
The electric triple scissor lift table is a premium lifting solution designed for applications requiring extra-high vertical reach and reliable load handling. With load capacities of 1 to 2 metric tons and a maximum lifting height of up to 2990 mm, it delivers excellent stability, robustness, and smooth lifting performance. Equipped with a Bucher hydraulic power unit and comprehensive safety features, this lift table is ideal for industrial, warehouse, and production environments where safe and efficient high-level lifting is essential.
Details of Electric triple scissor lift table
▲ Premium electric triple scissors lift table with a capacity of 1 to 2 metric tons
▲ Lift height min. / max.: 470 / 2990 mm (SHT1000) or 560 / 2990 (SHT2000)
▲ Platform dimensions: 1700 x 1000 mm
▲ Bucher hydraulic electro-pump
▲ Fitted with high-end components
▲ Excellent overall robustness
▲ Safety clearance to prevent trapping during operation
▲ Shear protection
▲ Self-lubricated rollers and bushings
▲ Lowering speed control valve
▲ Hose burst valve
▲ Triple scissors table
▲ Safety trip bars
▲ Upper travel limit switch
▲ Hand controller with 4m cable
▲ Download the product specifications for further technical information
Options
▲ 220V single-phase available on request
|
