pallet tilter

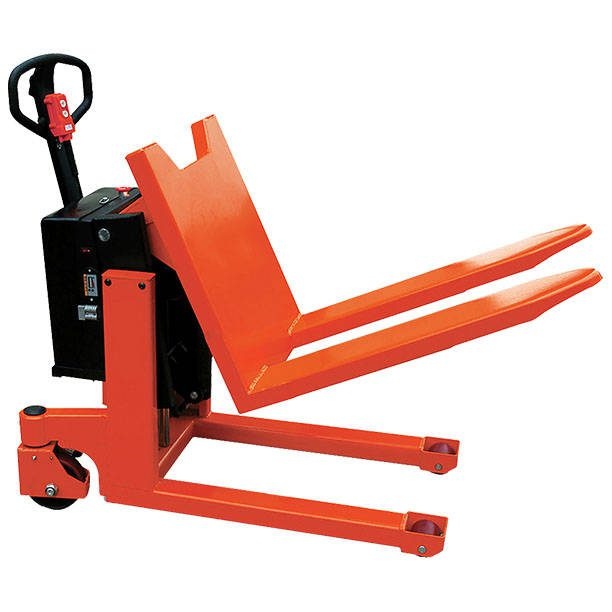

LT series pallet tilters are designed to lift the pallet and tilt it to the ergonomic angle. ?LT10M manual pallet tilter & LT10E electric pallet tilter are worked to allow the users to ergonomically reach loads easily without having to bend down or over-stretch. The Electric tilt pallet jack has forced steering on one wheel to make manoeuvring easy. Lift /lower functions are controlled by a switch on the control lever. Tilt/return functions are controlled by a remote control, which is fitted with a long wire, and can make the operator and the tilter with load keep a certain distance, more safer. Lift /lower function and Tilt/return functions can be operated independently of each other or simultaneously. When Tilt/return functions are to be used, the tilter must be on a firm surface, and the universal wheel shall be braked. When Tilt/return functions are to be used to stack materials, the handle can be turned to the side to make access to the stack table easier.
As a pallet tilting equipment, this pallet jack tilter can be used as a pallet truck and also a tilting pallet truck, this can not only improve your work efficiency, but also save costs.
Handle can be turned and locked in position away from the work area. Its applies to both sitting and standing positions. Forks of the pallet tilt jack can be tilted up to 90 degree. They both are supplied as standard with parking brake and foot protectors.
Conforms to EN1757-1 and EN1175
Details of pallet tilter
▲This pallet tilter truck is designed to move and tilt loads like boxes, cases, etc.
▲Available in two versions: manual tilting or electric tilting
▲This pallet tilter truck allows to adjust the operators working position and facilitates the storage of contents
▲90-degree Fork tilt
▲Caster brakes and foot protection
▲Load capacity: 1 ton
▲Fork length: 800 mm
▲Width across forks: 560 mm
▲Lift height: 285 mm
▲Min. / Max. center of gravity: 200 / 400 mm
|
