      Home >> Pallet Truck & High Lift >> High Lift Scissor Truck >> HSG SERIES

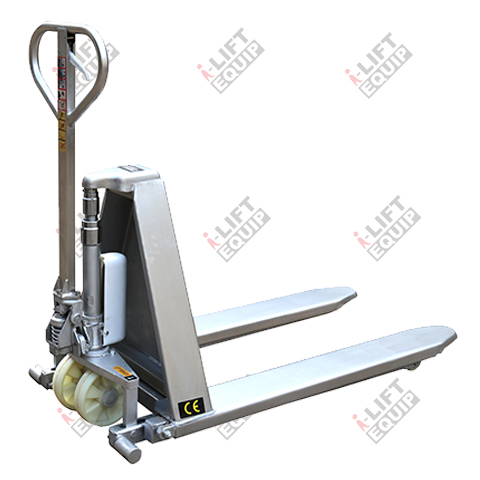

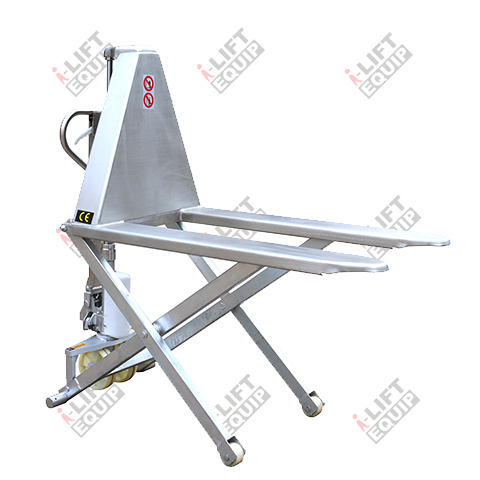

    HSG SERIES
    ▲ Maximun corrosion resistance by 304 stainless steel platform and frame, galvanized scissor.
    ▲ Truck features support legs that automatically extend as the skid is lifted for stability (unit will not move when the load is lifted).
    ▲ Note: For use with Single-Faced Pallets, Skids and Bulk Containers only.
    i-LIFT NO. Model No. Capacity kg(lb.) Min. Fork Height mm(in.) Max. Fork Height mm(in.) Fork Length mm(in.) Overall Forks Width mm(in.)
    1410801 HSG540M 1000 (2200) 85 (3.3) 800 (31.5) 1165 (45.9) 540 (21.3)
    1410802 HSG680M 1000 (2200) 85 (3.3) 800 (31.5) 1165 (45.9) 680 (26.8)
    1410803 HSG540E 1000 (2200) 85 (3.3) 800 (31.5) 1165 (45.9) 540 (21.3)
    1410804 HSG680E 1000 (2200) 85 (3.3) 800 (31.5) 1165 (45.9) 680 (26.8)
