      Home >> Access Lift and Lift Table >> Stationary Lift Table >> QAL SERIES

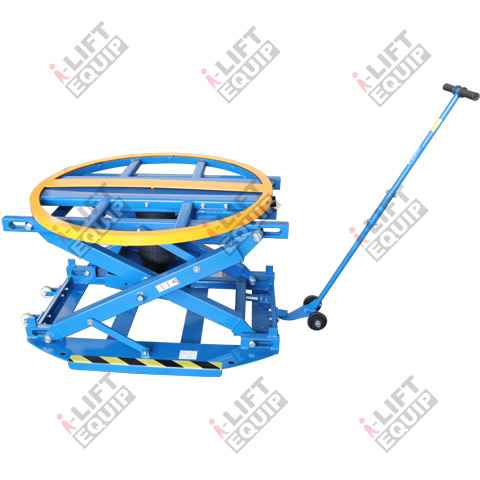

    QAL SERIES

    ▲ Works with loads from 220-4400 lbs.
    ▲ Automatically positions loads between 10.4" and 28".
    ▲ Requires no electrical power.
    ▲ Can be disconnected from shop air or compressor once airbag is inflated.
    ▲ Small base allows workers to stand up close to the QAL1000 at any position.
    ▲ Stable design requires no floor lagging.
    ▲ Built-in fork pockets facilitate relocation to multiple work areas.
    ▲ Easily move to any location with optional table mover without forklift.

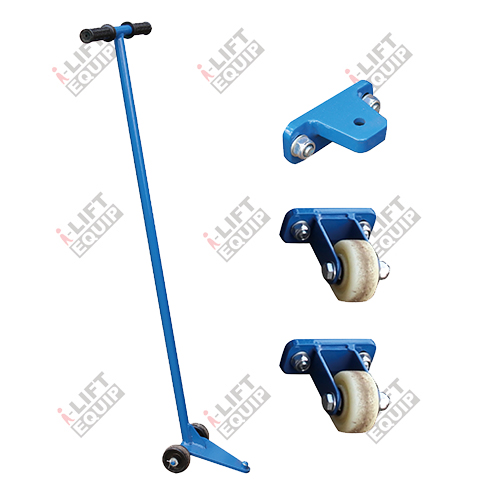

    Option:Lift table mover(TM01).

    i-LIFT NO. Model No. Capacity kg(lb.) Lowered Height mm(in.) Raised Height mm(in.) Platform Size mm(in.) Base Frame Size mm(in.)
    1313604 QAL1000 100-2000 (220-4400) 265 (10.4) 710 (28) 930×1220 (36.6×48)
