JL/JE/NHM/NHEN SERIES High Lift Scissor Truck

Home >> Pallet Truck & High Lift >> High Lift Scissor Truck >> JL/JE/NHM/NHEN SERIES

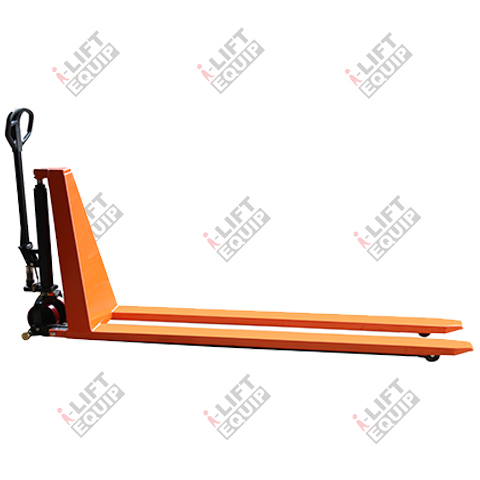

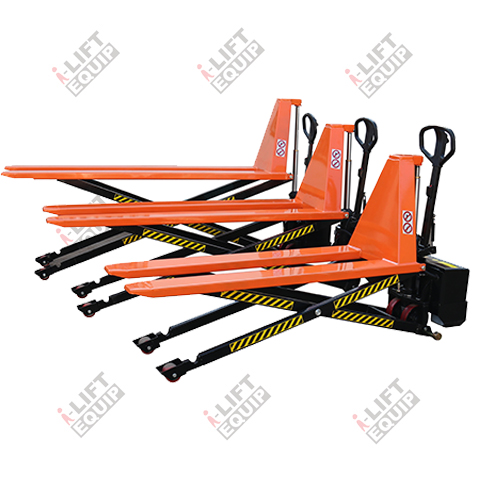

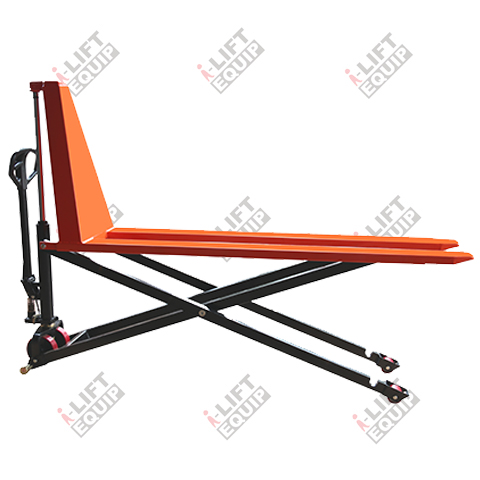

JL/JE/NHM/NHEN SERIES

New design with larger piston offer you real 1000kg capacity.

▲ Character:Extremely easy to pump and light make this unit very suitable as combined hand pallet truck and lift table.
▲ Quick-lift as standard with automatic transfer to normal lifting with loads over 150kg.
▲ Automatic descendng speed control by a uniquely hydraulic valve,the decending speed always keeps same regardless the truck with or without load. It will prevent cargo damage from fast descending.
▲ Front support legs and adjustable stabilizers extended to the floor automatically when the forks reach a height of 420mm,to ensure maximum stability and optimum braking.
▲ Ergonomic warm handle offers you simple and comfortable operation.
▲ Heavy duty design:4mm steel plate fork frame and large lift piston ensure the truck to reach rated capacity.
▲ Conforms to EN1757-4.

i-LIFT NO.	Model No.	Capacity kg(lb.)	Min. Fork Height mm(in.)	Max. Fork Height mm(in.)	Fork Length mm(in.)	Overall Forks Width mm(in.)
	NH1068M	1000 (2200)	85(3.3)/90(3.5)	500(19.7)/600(23.6)/680(26.8)/800(31.5)	800(31.5)/900(35.4)/1000(39.4)/1150(45.3)/1500(59.1)/1800(70.9)/2000(78.7)	680(27)
	NH1054M	1000 (2200)	85(3.3)/90(3.5)	500(19.7)/600(23.6)/680(26.8)/800(31.5)	800(31.5)/900(35.4)/1000(39.4)/1150(45.3)/1500(59.1)/1800(70.9)/2000(78.7)	540(21.3)
	NH1068EN	1000 (2200)	85(3.3)/90(3.5)	500(19.7)/600(23.6)/680(26.8)/800(31.5)	800(31.5)/900(35.4)/1000(39.4)/1150(45.3)/1500(59.1)/1800(70.9)/2000(78.7)	680(27)
	NH1054EN	1000 (2200)	85(3.3)/90(3.5)	500(19.7)/600(23.6)/680(26.8)/800(31.5)	800(31.5)/900(35.4)/1000(39.4)/1150(45.3)/1500(59.1)/1800(70.9)/2000(78.7)	540(21.3)
	JL6810	1000 (2200)	85(3.3)/90(3.5)	500(19.7)/600(23.6)/680(26.8)/800(31.5)	800(31.5)/900(35.4)/1000(39.4)/1150(45.3)/1500(59.1)/1800(70.9)/2000(78.7)	680(27)
	JL5410	1000 (2200)	85(3.3)/90(3.5)	500(19.7)/600(23.6)/680(26.8)/800(31.5)	800(31.5)/900(35.4)/1000(39.4)/1150(45.3)/1500(59.1)/1800(70.9)/2000(78.7)	540(21.3)
	JE6810	1000 (2200)	85(3.3)/90(3.5)	500(19.7)/600(23.6)/680(26.8)/800(31.5)	800(31.5)/900(35.4)/1000(39.4)/1150(45.3)/1500(59.1)/1800(70.9)/2000(78.7)	680(27)
	JE5410	1000 (2200)	85(3.3)/90(3.5)	500(19.7)/600(23.6)/680(26.8)/800(31.5)	800(31.5)/900(35.4)/1000(39.4)/1150(45.3)/1500(59.1)/1800(70.9)/2000(78.7)	540(21.3)
