| Capacity kg(lb.)： | 750 (1650) |

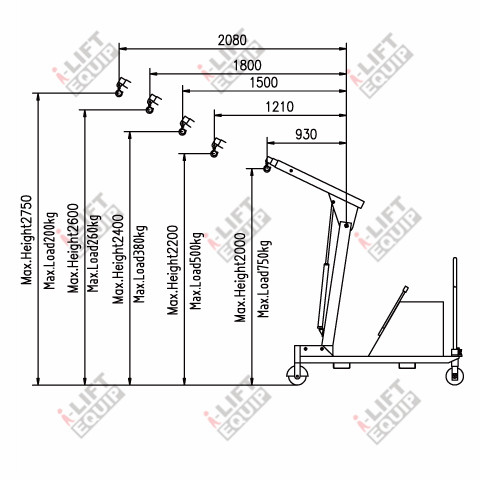

| Max load at jib length 925 kg(lb.)： | 750 (1650) |
| Max load at jib length 1210 kg(lb.)： | 500 (1100) |
| Max load at jib length 1500 kg(lb.)： | 380 (836) |
| Max load at jib length 1800 kg(lb.)： | 260 (572) |
| Max load at jib length 2080 kg(lb.)： | 200 (440) |
| Hydraulic Pump kg(lb.)： | Electric |
| Wheel mm(in.)： | Steel+PU φ180 (φ7) |
| Max. crane arm length mm(in.)： | 2080 (81.9) |
| Min. crane arm length mm(in.)： | 930 (36.6) |
| Lifting height max. cantilever arm extended mm(in.)： | 2750 (108.3) |
| Overall Size mm(in.)： | 2400×910×1630 (94.5×35.8×64.2) |
| Packing Size mm(in.)： | 2400×1900×1700 (94.5×74.8×66.9) |
| Weight (without counterweight&box) kg(lb.)： | 220 (484) |
| Weight of counterweight box kg(lb.)： | 280+40 (616+88) |
| Total Weight(with counterweight&box) kg(lb.)： | 540 (1188) |
