| Rated Capacity kg(lb.)： | 3000 (6600) |
| Standard Lifting Height mm(in.)： | 3000 (118.1) |
| Effort to Rated Capacity (N)： | 340 |
| Diameter of Load Chain mm(in.)： | φ8×24 (φ0.3×0.9) |
| No.of Load Chain Falls： | 2 |
| Net Weight kg(lb.)： | 27 (59.4) |
| Min. Distance between Hooks mm(in.)： | 465 (18.3) |
| Test Load (KN)： | 37.5 |
| Extra Weight Per Meter of Extra Lift kg(lb.) ： | 3.7 (8.1) |

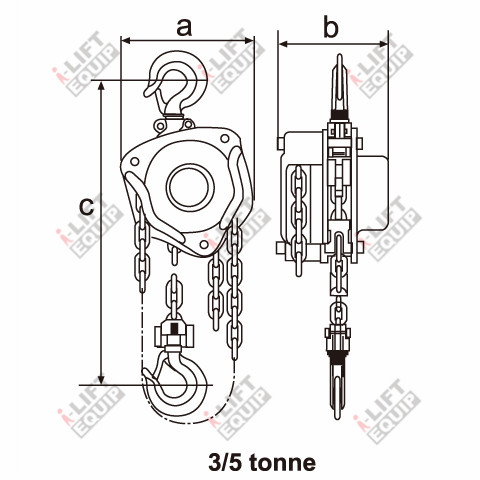

| Dimensions A mm(in.)： | 161 (6.3) |
| Dimensions B mm(in.)： | 199 (7.8) |
