| Rated Capacity kg(lb.)： | 5000 (11000) |
| Standard Lifting Height mm(in.)： | 3000 (118.1) |
| Effort to Rated Capacity (N)： | 414 |
| Diameter of Load Chain mm(in.)： | φ10×30 (φ0.4×1.2) |
| No.of Load Chain Falls： | 2 |
| Net Weight kg(lb.)： | 45.5 (100.1) |
| Min. Distance between Hooks mm(in.)： | 636 (25) |
| Test Load (KN)： | 75 |
| Extra Weight Per Meter of Extra Lift kg(lb.) ： | 5.6 (12.3) |

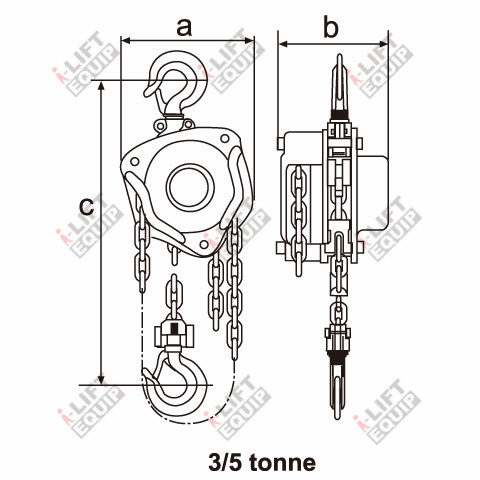

| Dimensions A mm(in.)： | 186 (7.3) |
| Dimensions B mm(in.)： | 253 (10) |
