| Rated Capacity kg(lb.)： | 10000 (22000) |
| Standard Lifting Height mm(in.)： | 3000 (118.1) |
| Effort to Rated Capacity (N)： | 414 |
| Diameter of Load Chain mm(in.)： | φ10×30 (φ0.4×1.2) |
| No.of Load Chain Falls： | 4 |
| Net Weight kg(lb.)： | 83 (182.6) |
| Min. Distance between Hooks mm(in.)： | 798 (31.4) |
| Test Load (KN)： | 125 |
| Extra Weight Per Meter of Extra Lift kg(lb.) ： | 9.7 (21.3) |

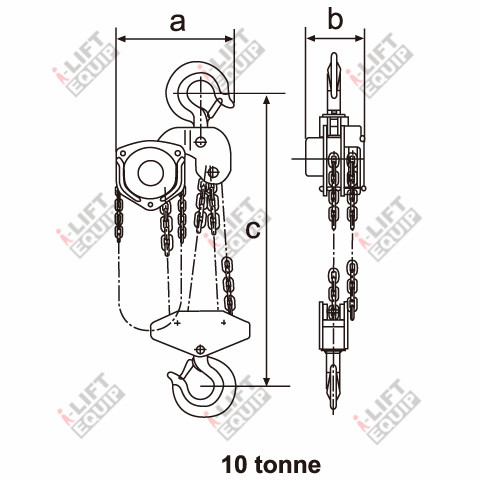

| Dimensions A mm(in.)： | 207 (8.4) |
| Dimensions B mm(in.)： | 398 (15.7) |
