| Rated Capacity kg(lb.)： | 750 (1650) |
| Standard Lifting Height mm(in.)： | 1500 (59.1) |
| Effort to Rated Capacity (N)： | 140 |
| Diameter of Load Chain mm(in.)： | φ6 (φ0.2) |
| No.of Load Chain Falls： | 1 |
| Net Weight kg(lb.)： | 7.5 (16.5) |
| Min. Distance between Hooks mm(in.)： | 320 (12.6) |
| Test Load (KN)： | 11 |
| Length of Lever Handle mm(in.)： | 280 (11) |

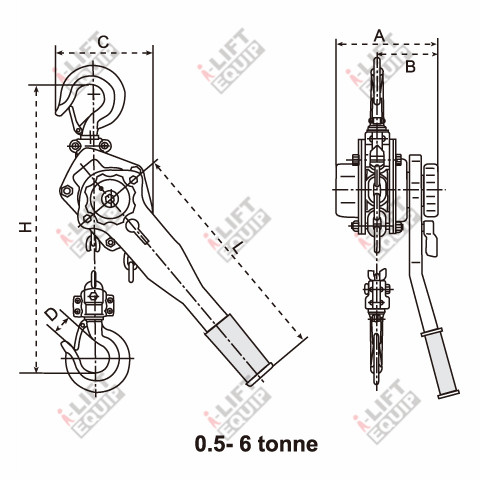

| Dimensions A mm(in.)： | 145 (5.7) |
| Dimensions B mm(in.)： | 86 (3.4) |
| Dimensions C mm(in.)： | 122 (4.7) |
| Dimensions D mm(in.)： | 37 (1.5) |
| Extra Weight per Extra Meter of Extra Lift kg(lb.)： | 0.8 (1.8) |
