| Rated Capacity kg(lb.)： | 9000 (19800) |
| Standard Lifting Height mm(in.)： | 1500 (59.1) |
| Effort to Rated Capacity (N)： | 360 |
| Diameter of Load Chain mm(in.)： | φ10 (φ0.4) |
| No.of Load Chain Falls： | 1 |
| Net Weight kg(lb.)： | 47 (103.4) |
| Min. Distance between Hooks mm(in.)： | 700 (27.6) |
| Test Load (KN)： | 112.5 |
| Length of Lever Handle mm(in.)： | 410 (16.1) |

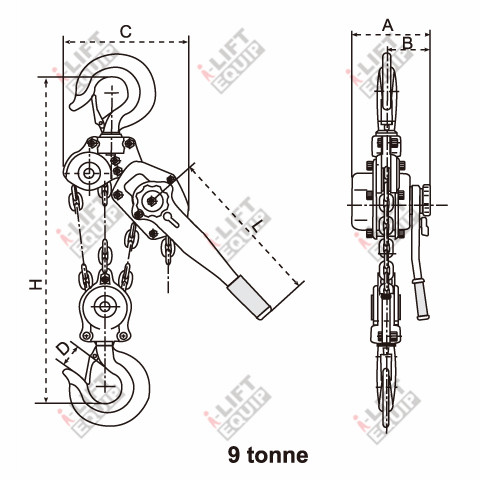

| Dimensions A mm(in.)： | 203 (8) |
| Dimensions B mm(in.)： | 118 (4.6) |
| Dimensions C mm(in.)： | 316 (12.4) |
| Dimensions D mm(in.)： | 85 (3.3) |
| Extra Weight per Extra Meter of Extra Lift kg(lb.)： | 6.6 (14.5) |
