| Positions： | 0°(A～M) |
| Fork Opening mm(in.)： | 346 (13.6) |
| Fork Pockets mm(in.)： | 180×74 (7.1×2.9) |
| Overall Size mm(in.)： | 2322×542×512 (91.4×21.3×20.2) |
| Packing Size mm(in.)： | 2340×560×630 (92.1×22×24.8) |
| Net Weight kg(lb.)： | 240 (528) |

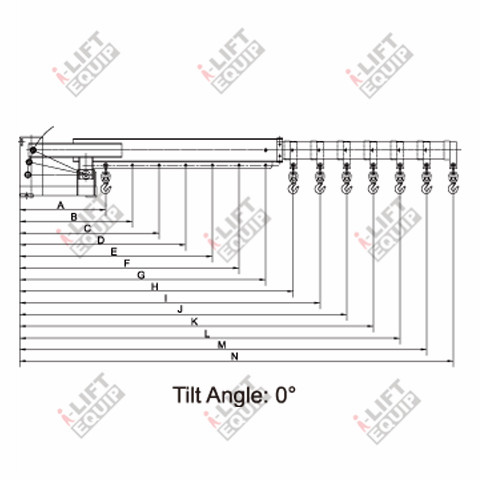

| Capacity Range 0° mm/kg(in./lb.)： | 740/3000～3726/596 (29.1/6600～146.7/1311.2) |

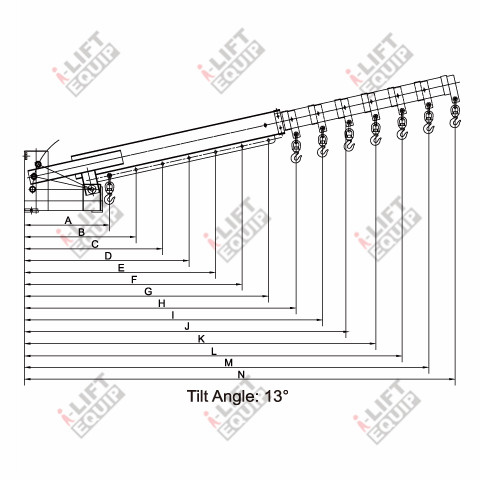

| Capacity Range 13° mm/kg(in./lb.)： | 718/3092～3633/611 (28.3/6802.4～143/1344.2) |

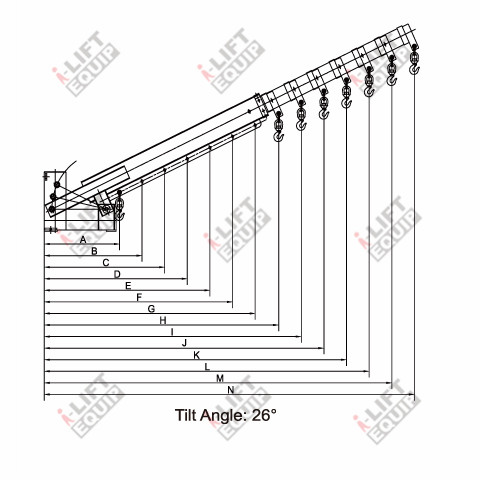

| Capacity Range 26° mm/kg(in./lb.)： | 690/3217～3395/654 (27.2/7077.4～113.7/1438.8) |
