| Capacity kg(lb.)： | 136 (299.2) |
| Max. Working Height mm(in.)： | 17700 (696.8) |
| Max. Platform Height mm(in.)： | 16000 (629.9) |
| Platform Size mm(in.)： | 700×700 (27.5×27.5) |

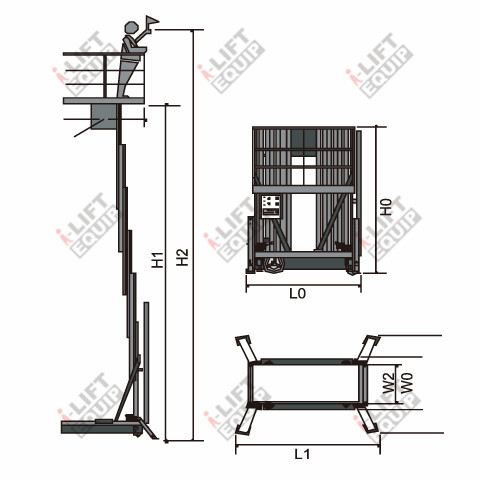

| Overall Dimensions mm(in.)： | 3120×1250×2190 (122.8×49.2×92.5) |
| Outspread Size mm(in.)： | 4170×3070 (164×120.9) |
| Driving Motor (V/Kw)： | 220/0.75 |
| Lifting Motor (V/Kw)： | 0.75/1.5 |
| Net Weight kg(lb.)： | 1690 (3718) |
| Voltage： | AC,220V/50Hz |
| Type： | Self-Propelled |
|
