Single-Fork Manual Pallet Truck?
A single-fork manual pallet truck is a compact, hand-operated material-handling device designed to lift and move loads in tight or restricted spaces. Unlike traditional double-fork pallet trucks, it uses a single reinforced fork and a sealed hydraulic pump system to raise and transport pallets or special loads safely and efficiently.
Single-fork pallet trucks are especially useful when pallets can only be accessed from one side—such as when positioned against walls, racks, or other pallets. They are also suitable for handling non-standard or uniquely shaped loads, making them a flexible solution for specialized material-handling tasks.
Details of Single-Fork Manual Pallet Truck

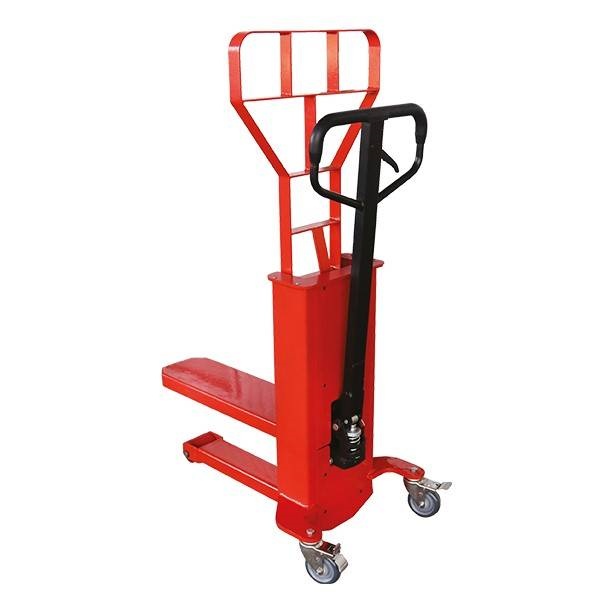

▲The ACM500 single-fork hand pallet truck can move loads of up to 500 kg.

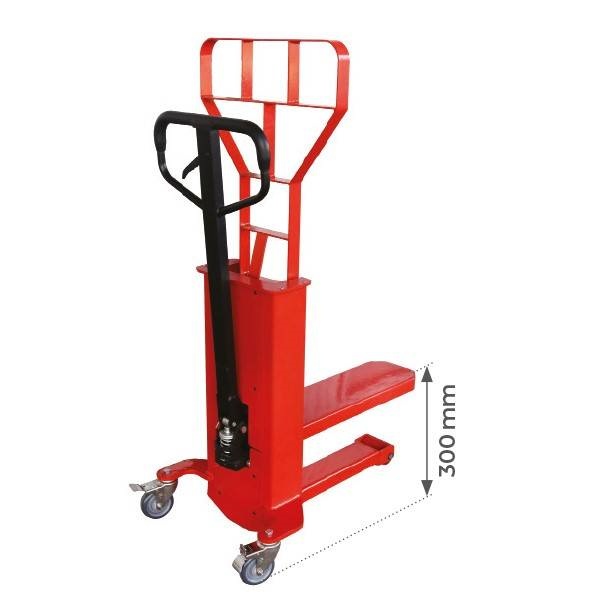

▲The pallets or loads transported can be elevated by up to 300 mm.
▲The single-fork pallet truck’s hydraulic pump is totally sealed.
▲The forks are reinforced for maximum strength and durability.
▲This pallet truck weighs 60 kg.
▲Handling operations are made easier and safer thanks to the ergonomic tiller and load backrest fitted as standard.
▲Compared to conventional double-fork pallet trucks, this single-fork pallet truck is ideal for handling in environments where space is limited, such as narrow warehouse aisles. Its compact design makes it easier to manoeuvre in these confined or restricted spaces.
▲The ACM500 single-fork hand pallet truck is also ideal for gripping and lifting pallets from one side only, as may be the case when the pallet is placed against a wall or another pallet, limiting access to the other side.
▲This handling equipment can be adapted for special loads with non-standard dimensions or particular shapes.
▲For further technical information, please consult the documentation available for download.
|
