Manual Pallet Truck
AC series hydraulic hand pallet truck, rubber coated handle comfortable even under extreme temperature conditions.
Fully sealed hydraulic unit housing. Single valve cartridge for easy maintenance. Powder coated chassis made of high grade steel.
Rugged construction and excellent pricing make this pallet truck the best value for your material handling needs. Forks feature entry rollers and tapered design for easy pallet and skid entry, and are reinforced for heavy duty loads. This pallet jack has a 3-function hand control (raise, neutral and lower) and offers a spring-loaded self-righting safety loop handle to enhance comfort and ease of operation. Hardened chrome piston with protective dust cover ensures long, dependable service of this skid lift jack. Floor protective polyurethane steer and load wheels. Durable powder coat finish.
Details of Manual Pallet Truck
▲Manual hand pallet truck with robust design
▲The 3mm thick chassis has a 5-year warranty

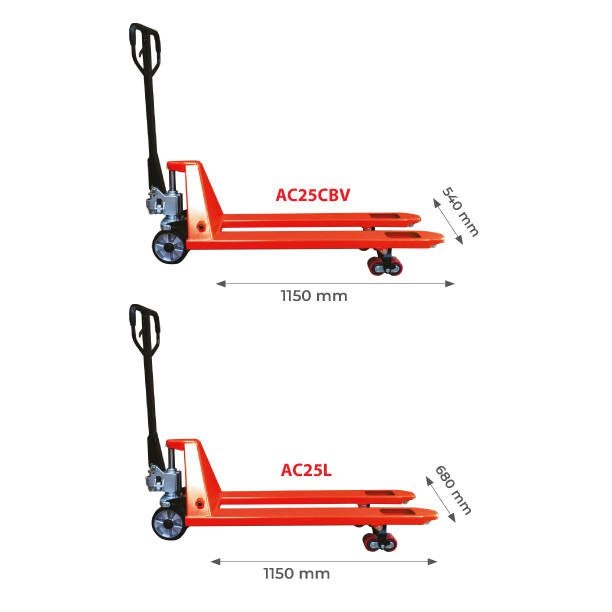

▲Fork length: 1150 mm
▲Lift height: 200 mm
▲Width across forks: 540 mm (except for AC25L: 685 mm)
▲German Wagner powder coating

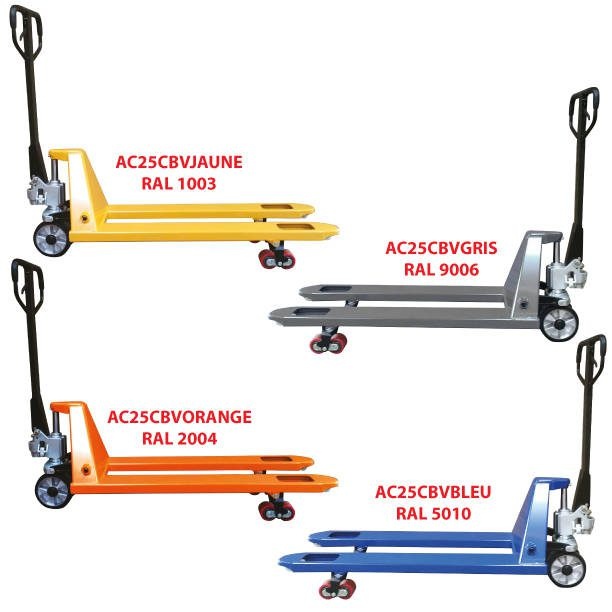

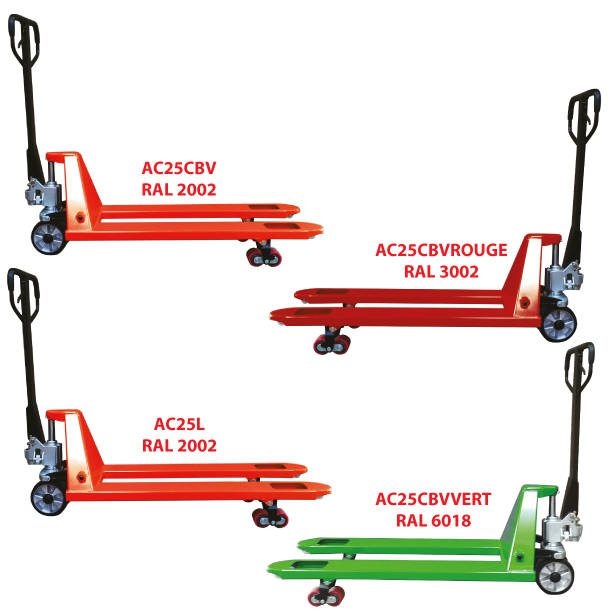

▲Available in 7 colors:
▲ORANGE STOCKMAN: RAL 2002
▲BLUE: RAL 5010
▲GREY: RAL 9006
▲YELLOW: RAL 1003
▲RED: RAL 3002
▲GREEN: RAL 6018
▲ORANGE: RAL 2004
▲CBV: ?200 mm rubber steering wheels, polyurethane tandem rollers
▲Five other wheels and rollers available in option for AC25CBV – ORANGE STOCKMAN: RAL 2002 (please find the options below)
▲German pump seals
▲Galvanized body pump
▲Ergonomic handle
▲6204 2RS sealed bearings
▲200° rotation handle
▲Load capacity: 2.5 ton
▲Weight: 74 kg
Options
▲Axle, bearings, stainless steel chain
▲Extreme temperature bearings
▲Extreme cold oil
▲Foot pedal
▲Safety guard
▲Handbrake, foot brake, deadman switch
▲Polyurethane and/or polyamide wheels and rollers
▲Antistatic wheels
|
